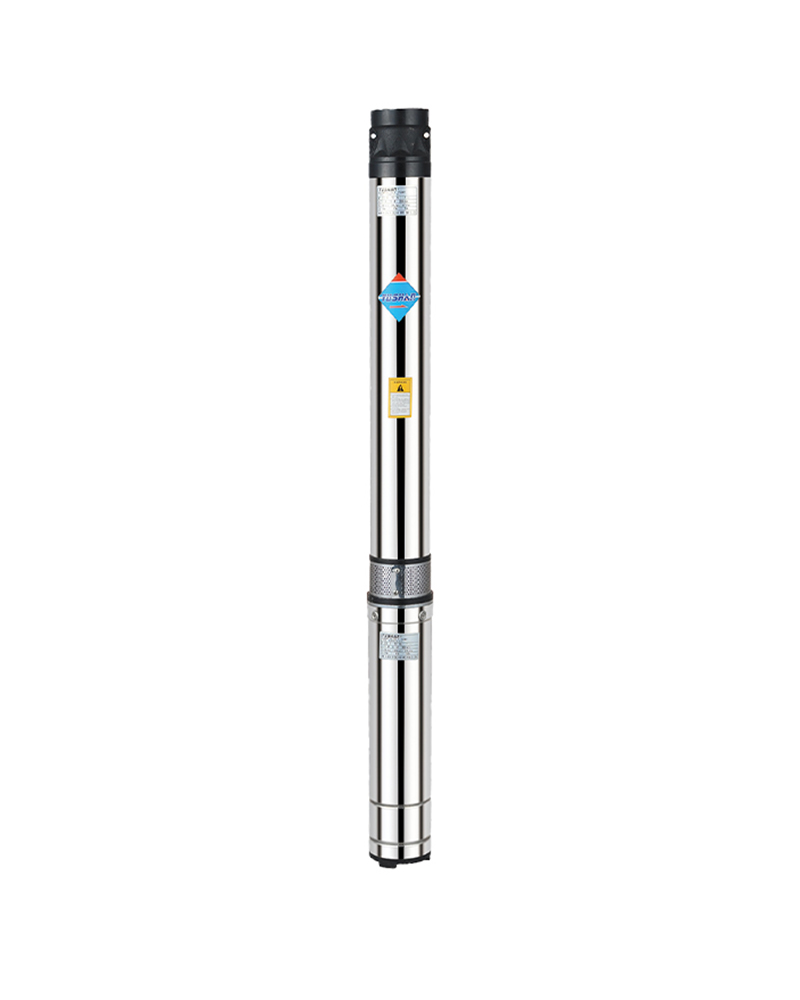

5SR15 Oil-Filled Motor With High Head And High Lift 5" Submersible Pump

5 INCH DEEP WELL PUMP,100% Copper wire ,Oil filled motor ,big water flow with high head,PPO impeller ,Cast iron outlet&inlet,high quality with good price

TECHNICAL DATA

Pump:

Qmax:23(m³/h)

Capacity from 12 to 17(mm/h)

Total head from 143 to 39(m)

Motor:

Power:4 to 11kW(Single phase)

Insulation class: B

Protection grade:lP58

Maximum diameter: Φ 125mm

Highest temperature of liquid:35℃

Make an inquiry

Description1

Performance chart n≈2850rpm

Model	POWER		Capacity and Head
Three Phase 380-415~ 50Hz	kW	HP	m³/h	0	8	12	15	17	19
Three Phase 380-415~ 50Hz	kW	HP	l/min	0	133	200	250	283	317
5SR15-8	4	5.5	Head (m)	73	65	55	45	39	31
5SR15-11	5.5	7.5		106	87	73	60	48	37
5SR15-14	7.5	10		138	116	98	80	67	52
5SR15-18	9.2	12.5		169	142	120	98	82	64
5SR15-22	11	15		201	169	143	115	98	76

An oil-filled motor with high head and high lift submersible pump is a type of electrical pump that is designed to operate while fully submerged in water. It is typically used for applications where the pump needs to lift water from a deep well or from a large body of water, such as a river or lake. The oil-filled motor helps to keep the pump running smoothly and helps to extend its lifespan. The high head and high lift capabilities of the pump allow it to effectively move water over a long distance or to a great height. Some common applications for this type of pump include irrigation, water supply for residential or commercial buildings, and flood control.

The motor is filled with oil, which helps to keep it cool and lubricated during operation. The high head and high lift capabilities of the pump allow it to move water to a high elevation or against a high resistance, such as when pumping water uphill or through a long pipe. This type of pump is commonly used for a variety of applications, including irrigation, flood control, and water supply.

It is also equipped with a high head and high lift capability, which means that it is capable of pumping water to a relatively high elevation or against a high pressure head. This type of pump is commonly used in a variety of applications, including irrigation, flood control, and water supply. It is typically powered by electricity and is capable of handling a wide range of flow rates and head pressures.

The oil-filled motor helps to keep the pump running smoothly and efficiently, while the high head and high lift capabilities allow the pump to move large amounts of water over a relatively long distance or to a significant height. These pumps are often used in irrigation systems, flood control, and other applications where a high flow rate and long distance or high lift is required.

Performance chart n≈2850rpm

Model	POWER		Capacity and Head
Three Phase 380-415~ 50Hz	kW	HP	m³/h	0	8	12	15	17	19
Three Phase 380-415~ 50Hz	kW	HP	l/min	0	133	200	250	283	317
5SR15-8	4	5.5	Head (m)	73	65	55	45	39	31
5SR15-11	5.5	7.5		106	87	73	60	48	37
5SR15-14	7.5	10		138	116	98	80	67	52
5SR15-18	9.2	12.5		169	142	120	98	82	64
5SR15-22	11	15		201	169	143	115	98	76
