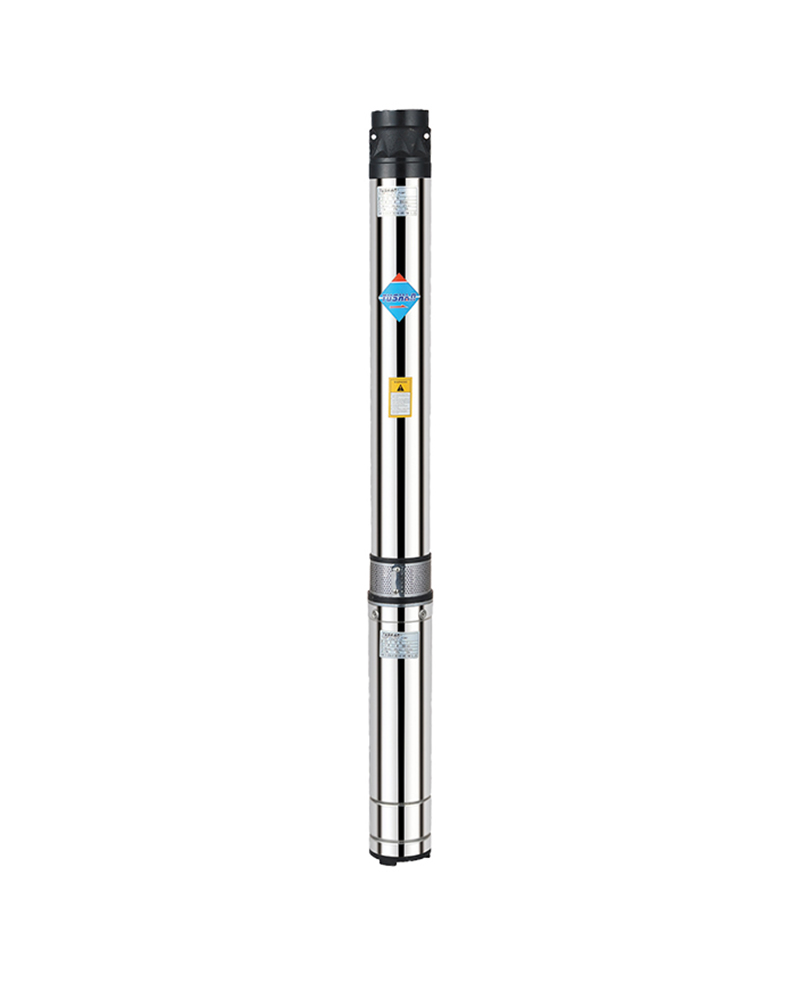

5SR10 5" Submersible Deep Well Pump

This series of pumps are widely used in the fields of farmland irrigation, well water, water table, landscape fountain, urban construction and water storage.All through cetificcate with CE,ROHS,ISO9001:2008 .

TECHNICAL DATA

Pump:

Qmax:23(m³/h)

Capacity from 12 to 17(mm/h)

Total head from 143 to 39(m)

Motor:

Power:4 to 11kW(Single phase)

Insulation class: B

Protection grade:lP58

Maximum diameter: Φ 125mm

Highest temperature of liquid:35℃

Make an inquiry

Description1

Performance chart n≈2850rpm

Model	POWER		Capacity and Head
Three Phase 380-415~ 50Hz	kW	HP	mh	o	5	8	10	12	15
Three Phase 380-415~ 50Hz	kW	HP	l/min	0	83	133	167	200	250
5SR10-8	3	4	Head (m)	73	65	57	50	44	31
5SR10-12	4	5.5		104	93	81	70	62	45
5SR10-15	5.5	7.5		147	130	113	100	87	62
5SR10-20	7.5	10		197	176	154	135	118	85
5SR10-25	9.2	12.5		239	213	186	165	143	102
5SR10-28	11	15		270	240	210	185	160	115

A 5" submersible deep well pump is a type of electrical water pump that is designed to be placed inside a well and can operate while fully submerged in water. It is typically used to extract water from deep aquifers or to deliver water to a remote location. The pump is powered by an electrical motor and is connected to a power source via a long electrical cable. The pump is designed to operate efficiently at depths of up to several hundred feet and can typically deliver water at a rate of several gallons per minute. They are commonly used in domestic and agricultural settings to provide a reliable source of water for households and irrigation systems.

These types of pumps are typically used in domestic and agricultural settings to provide a water supply from underground sources. They are powered by electricity and are designed to be reliable and long-lasting. The size of the pump, which is expressed in inches, refers to the diameter of the pipe that is used to lower the pump into the well. The larger the diameter of the pipe, the more water the pump is capable of moving.

The pump is connected to a motor and is installed in a well casing that is drilled into the ground. The motor drives the pump, which draws water from the well and delivers it to the surface for use or storage. Deep well pumps are typically used in situations where the water table is deep below the surface or where there is no access to a municipal water supply.

These pumps typically consist of a motor, a pump casing, and a submerged impeller, and they are powered by electricity. They are designed to operate underwater, so they are usually sealed and protected against corrosion. To ensure optimal performance, it is important to choose a pump that is properly sized for the application and to follow the manufacturer's instructions for installation and maintenance.

Performance chart n≈2850rpm

Model	POWER		Capacity and Head
Three Phase 380-415~ 50Hz	kW	HP	mh	o	5	8	10	12	15
Three Phase 380-415~ 50Hz	kW	HP	l/min	0	83	133	167	200	250
5SR10-8	3	4	Head (m)	73	65	57	50	44	31
5SR10-12	4	5.5		104	93	81	70	62	45
5SR10-15	5.5	7.5		147	130	113	100	87	62
5SR10-20	7.5	10		197	176	154	135	118	85
5SR10-25	9.2	12.5		239	213	186	165	143	102
5SR10-28	11	15		270	240	210	185	160	115
